JZXLink - JZX100X - 232-4000
Link ECU
Easy to install - Affordable - Reliable.
The JZXLink - JZX100X ECU has been specifically designed for the Toyota Chaser JZX and fits the 1JZ VVTi engine. It fits simply inside the current factory fitted OEM enclosure, with no alteration needed to the factory wiring loom.
The full range of G4X PlugIn ECUs provide the latest in engine management technology and are designed to easily reach the full potential from your cars engine.
£0.00
£1,770.00
RRP: £1,770.00
- Description
- G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.
Designed for the 1JZ VVTi engine.

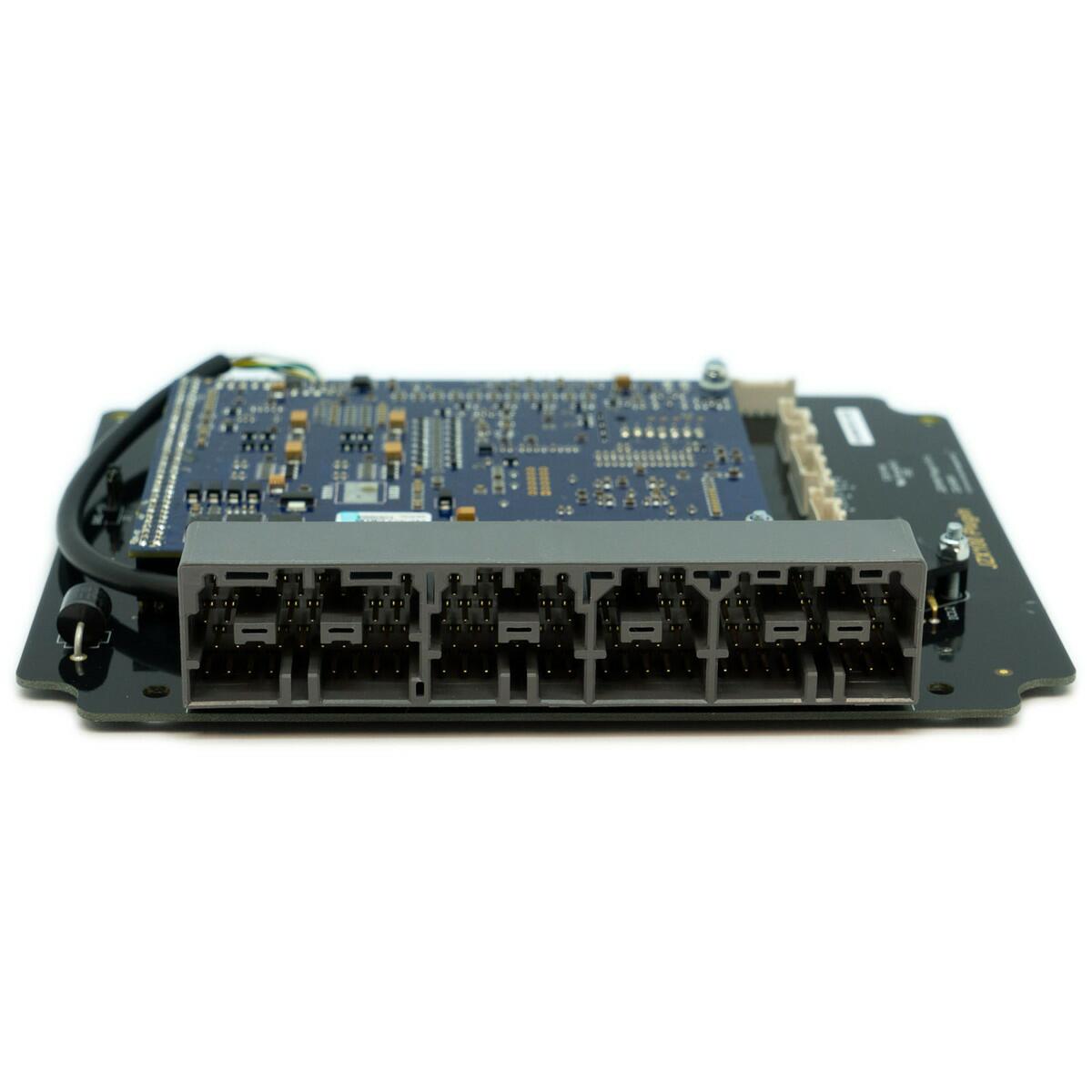

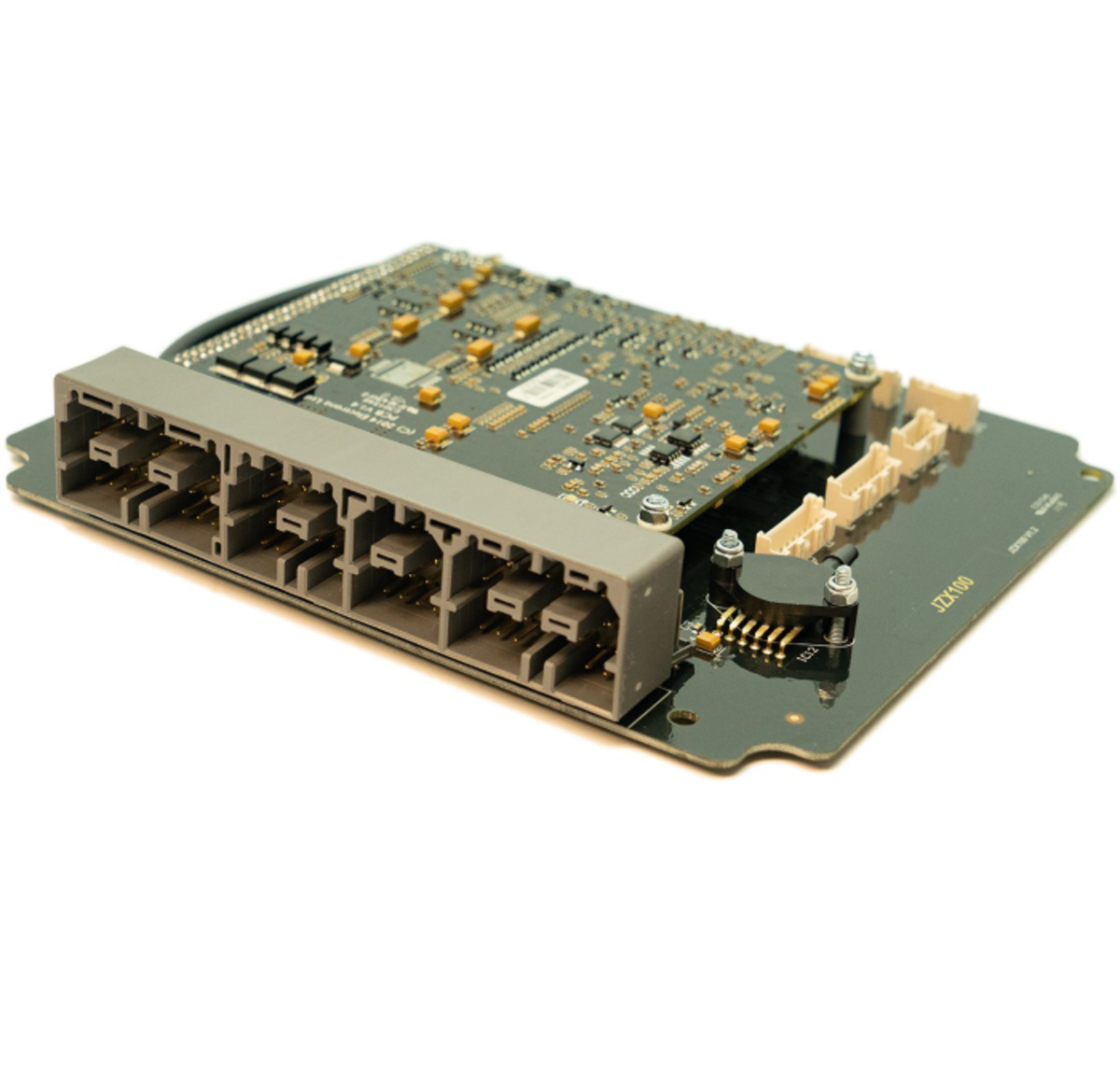

- Please check your connector matches the header in the listed photo before purchasing.
- This ECU works for manual transmissions only.
- ECU includes an onboard 7 bar MAP sensor.
- Most factory features are supported.
- Check the features tab for I/O expansion options
Suitable applications:
- JZX100 with 1JZ VVTi engine
- Features
G4X PlugIn Key Features (where applicable):
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features - antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune - automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512 mega bytes data logging memory
- Staged injection
- Knock with "windowing"

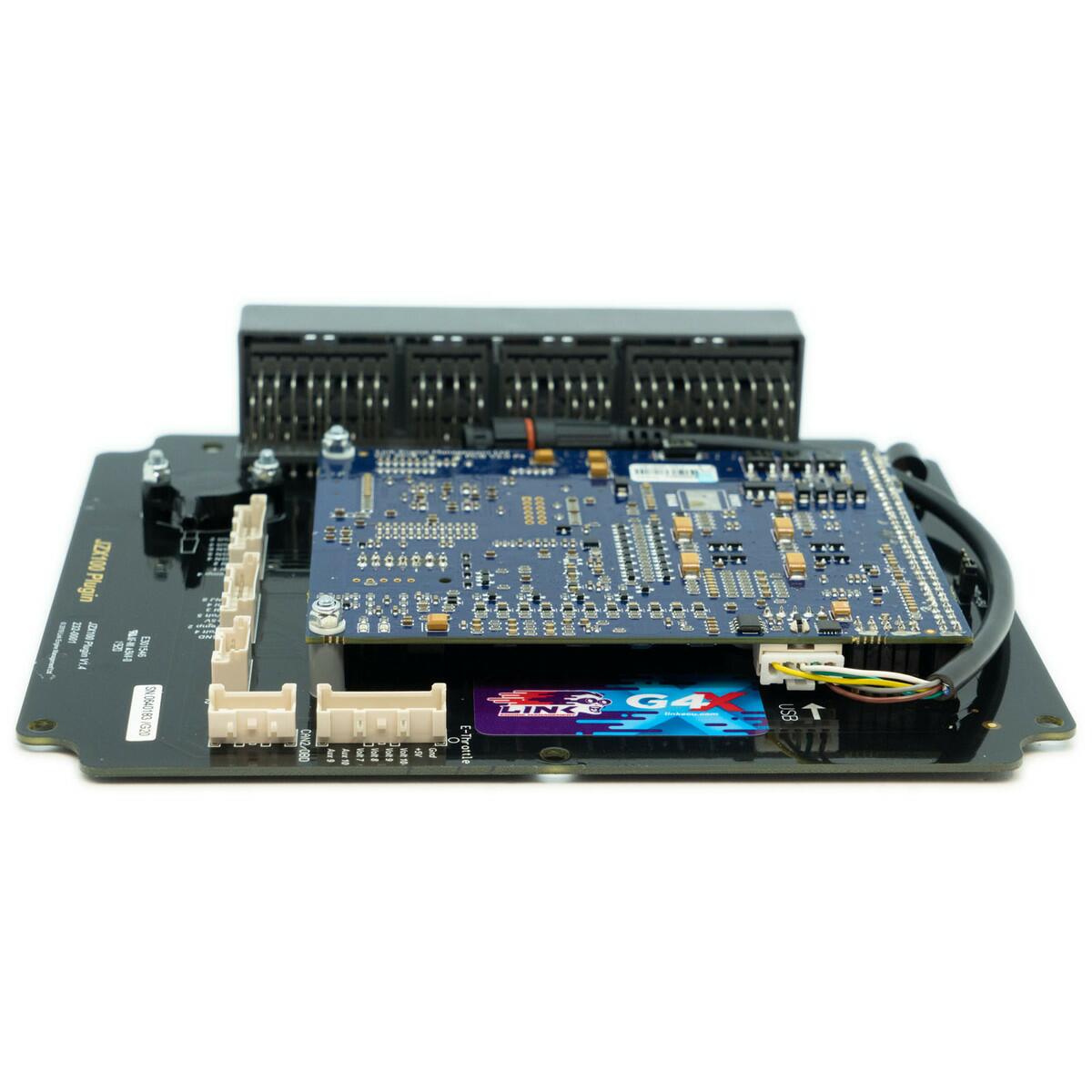

I/O Expansion Options
The following expansion connector inputs/outputs are provided:
Expansion Connector 1: (Con5)
- Gnd - Sensor Ground Only
- An Volt 4
- An Temp 2
- +5V Out - Low Current +5V Supply
- An Volt 5
- DI 3
- DI 4
- Aux Inj 8
Expansion Connector 2: (Con6)
- An Temp 4
- DI 1
- DI 2
- Aux Ign 4
- Aux Ign 5
- Aux Ign 6
- An Volt 1
- An Volt 2
Ethrottle Connector:
Ethrottle 1 Ground (Signal)
Ethrottle 2 +5v out
Ethrottle 3 An Volt 10
Ethrottle 4 An Volt 9
Ethrottle 5 An Volt 8
Ethrottle 6 An Volt 7
Ethrottle 7 Aux 10
Ethrottle 8 Aux 9
- Specifications
For full specifications, click here.
