WRXLink V11 - WRX11X - 238-4000 - Link ECU

WRXLink V11 - WRX11X - 238-4000
Link ECU

Easy to install - Affordable - Reliable.

The full range of G4X PlugIn ECUs provide the latest in engine management technology and are designed to easily maximise the true potential from your car's engine.

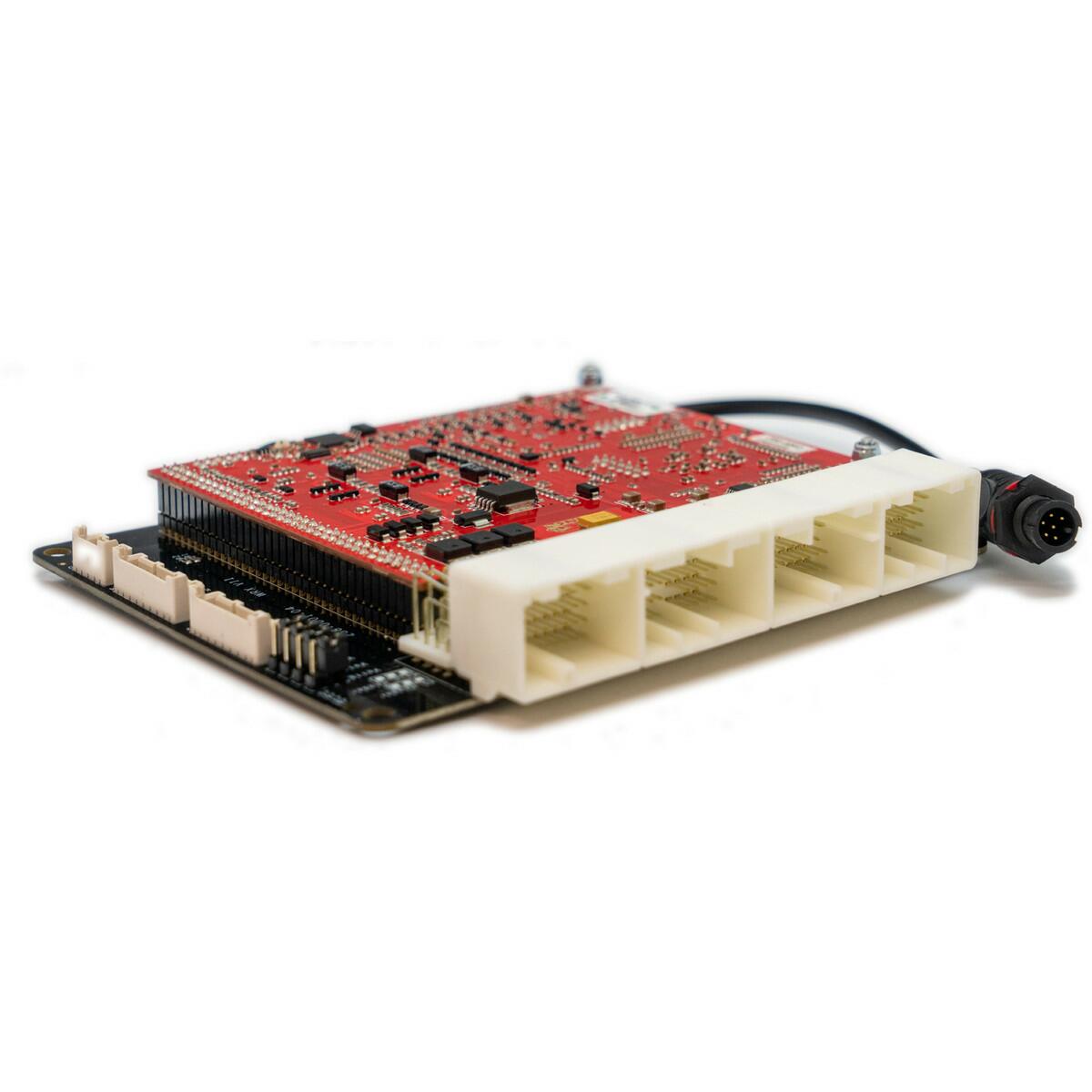

The WRXLink V11 plug in ECU fits directly inside the factory OEM enclosure and therefore, installation is simple. There is no alteration needed what-so-ever to the factory wiring loom.

The WRXLink V11 - WRX11X fits the following cars;

1) The 2007-2011 WRX and WRX STI with either the GR/GV/GH/GE chassis code. These are within the JDM/AUDM/SADM/EURO markets and for turbocharged engines EJ20 or EJ25.

2) The 2008-2010 USDM models which have the common international Denso ECU Pinout**

3) The 2015-2021 WRX STI with the VAB/VAF chassis code. These are for the JDM/AUDM/SADM/EURO markets and for turbocharged engines EJ20 or EJ25.



£0.00
£1,770.00
RRP: £1,770.00
Earn0
reward points

In stock

Sorry! We're out of stock, but you can still back order this item


  • Description

    G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

    This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

    Due to the amount of variation on this vehicle, please ensure you read the Configuration - Memo Text in PCLink.

    This product supports the following models:

    • 2007-2011 WRX and WRX STI with GR/GV/GH/GE chassis codes, for JDM/AUDM/SADM/EURO markets, with turbocharged EJ20 or EJ25 engines.
    • 2008-2010 USDM models which have the common international Denso ECU Pinout**
    • 2015-2021 WRX STI with VAB/VAF chassis codes, for JDM/AUDM/SADM/EURO markets, with turbocharged EJ20 or EJ25 engines

     **Note: Supports North American models with Denso ECU from late 2007-2010 only. Some North American models have a Hitachi ECU which is not supported. .

    Take a look at our full model list to find out which models are supported and which are not. Alternatively, contact your LinkECU Reseller or our 24/6 Tech Support Team.

    Important Notes

    • Please check your connector matches the header in the listed photo before purchasing.
    • This ECU works for manual transmissions only.
    • Air temp sensor highly recommended.
    • Most factory features are supported including DCCD, hill start assist, SI drive, cruise control, cam control & ABS supported.
    • Check the features tab for I/O expansion options.

    Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices.  This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.

  • Features

    G4X PlugIn Key Features (where applicable):

    • Up to 6D fuel and ignition mapping
    • Precision closed loop cam control (four cam, independent control)
    • Sequential fuel delivery
    • Digital triggering, all OEM patterns
    • OEM idle hardware supported
    • 5D boost control with three switchable tables
    • Motorsport features - antilag, launch, flat shift
    • Continuous barometric correction (on board)
    • CAN port
    • QuickTune - automated fuel tuning
    • Individual cylinder correction
    • USB tuning cable included
    • Stats recording into on-board memory
    • Gear compensations for spark, boost and fuel
    • Real time selectable dual fuel, ignition and boost maps
    • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
    • Boost control referenced to gear, speed or throttle position
    • 512 mega bytes data logging memory
    • Staged injection
    • Knock with "windowing"

    I/O Options:

    The following expansion connector inputs/outputs are provided:

    Expansion connector 1

    • Pin 1                Aux 16
    • Pin 2                DI 11
    • Pin 3                An Temp 4
    • Pin 4                Knock 2
    • Pin 5                Injector 6
  • Specifications

    For full specifications, click here.
