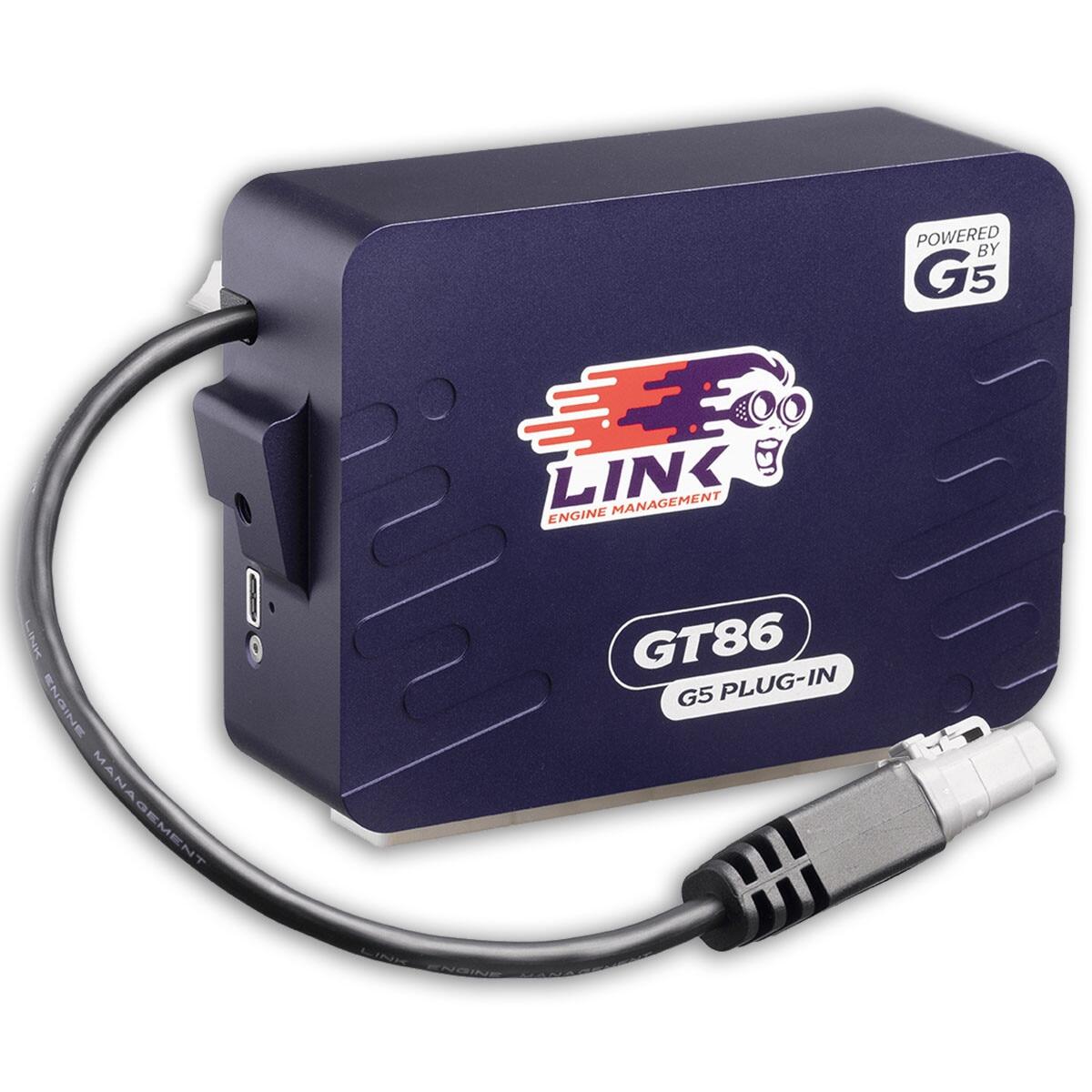

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom — no adapter harness needed — and comes with a sample map for a tuning head start. The GT86 G5 Plug-in processing unit runs the same powerful microcontroller and firmware as the G5 Voodoo Pro. Designed for the 2.0L 4U-GSE/FA20 H4 engine. Support for both Manual and Automatic Transmissions.

In the Box

G5-GT86 Plugin ECU

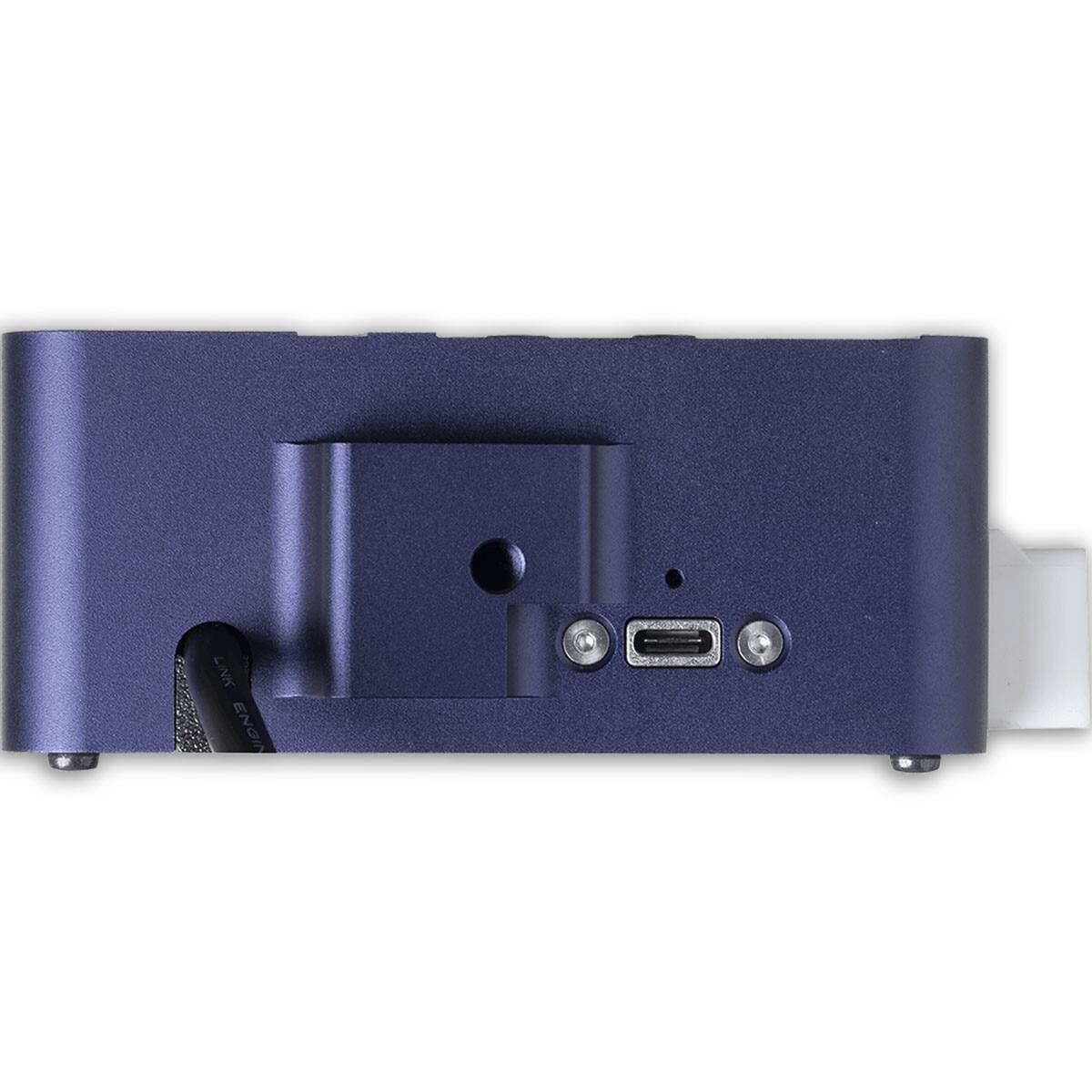

USB-C Connection Cable
Locking USB-C extension cable for easy tuning access
2 x M6 screws for ECU mounting in OEM bracket
DTM4 CAN Connection Cable (pre-installed in enclosure)
Link stickers

Notes

Due to the very tight nature of the factory ECU location, the LHD and RHD mounting methods differ
2017+ models have a Hall Effect crank sensor instead of Reluctor — Trigger 1 Type must be changed to 'Optical/Hall' and Trigger 1 Pull-up set to ON
2017+ models have a different DI Fuel Pressure sensor (4-pin instead of 3) — requires 8.2kohm pullup resistor and updated calibration

Features

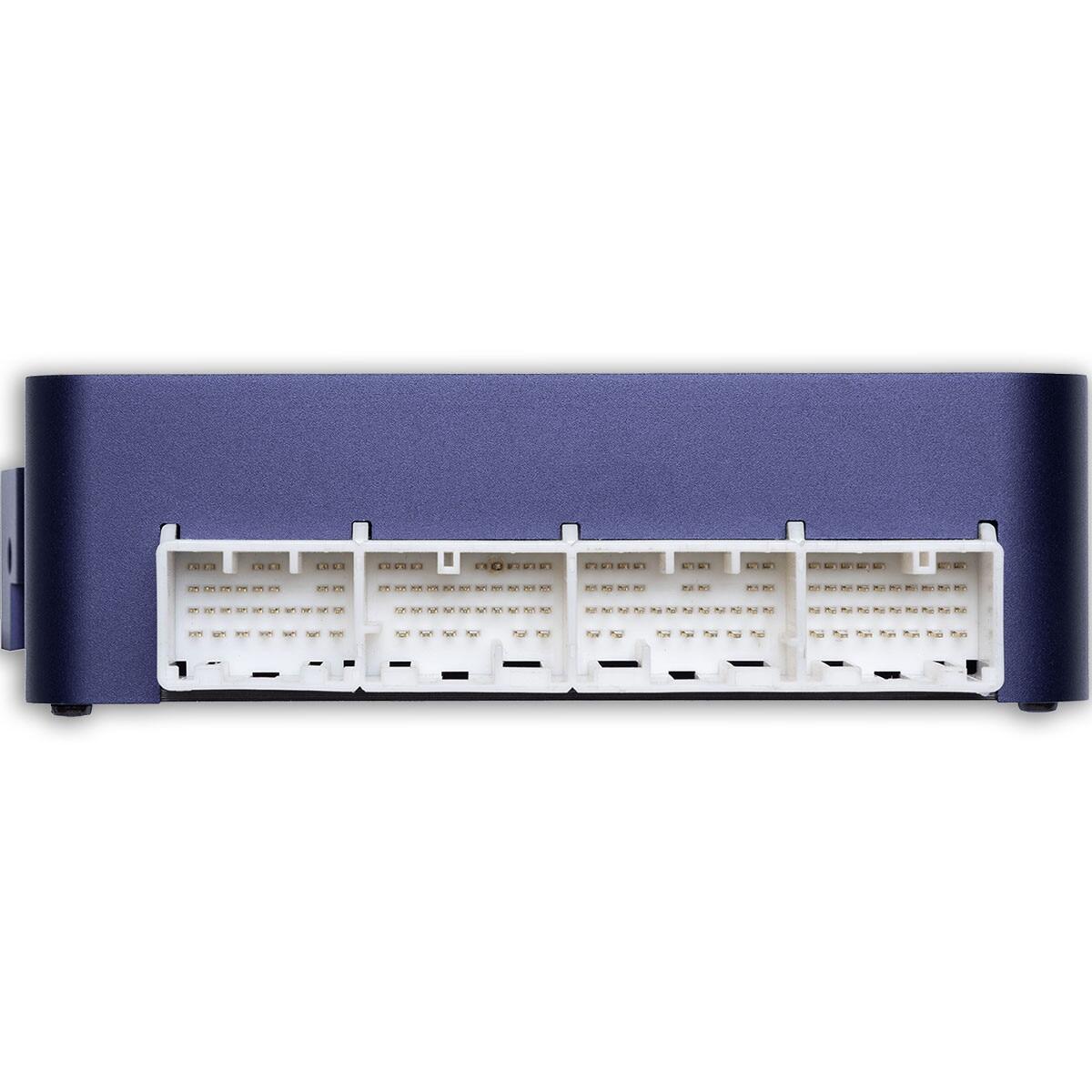

Plug and play — a direct replacement for the factory ECU, no adapter looms needed
Runs the same powerful microcontroller and firmware as the G5 Voodoo Pro
Full control of both Direct and Port Injection
All motorsport features enabled: anti-lag, boost control, cruise control, gear shift control, nitrous control, launch control, paddle shift control, race timer, power management, rolling anti-lag and traction control
Support for both Manual and Automatic Transmissions

Specifications

Toyota 86, ZN6, 2012–2021
Toyota GT86, ZN6, 2012–2021
Subaru BRZ, ZC6, 2012–2020

Right-Hand Drive vehicles only. For Left-Hand Drive, see part number 241-4200.

Important - Please read!

Documentation

Product Page & Technical Information dealers.linkecu.com

Software

Shopping basket

G5 ECU Plug-In - Toyota GT86/Subaru BRZ - RHD - 241-4000 - Link ECU

G5 ECU Plug-In - Toyota GT86/Subaru BRZ - RHD - 241-4000
Link ECU

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU, plugging straight into the original wiring loom with no adapter harness needed.

Running the same microcontroller and firmware as the G5 Voodoo Pro, it supports the 2.0L FA20 engine in Right-Hand Drive Toyota 86, GT86, and Subaru BRZ models from 2012–2021, with full control of both Direct and Port Injection.
