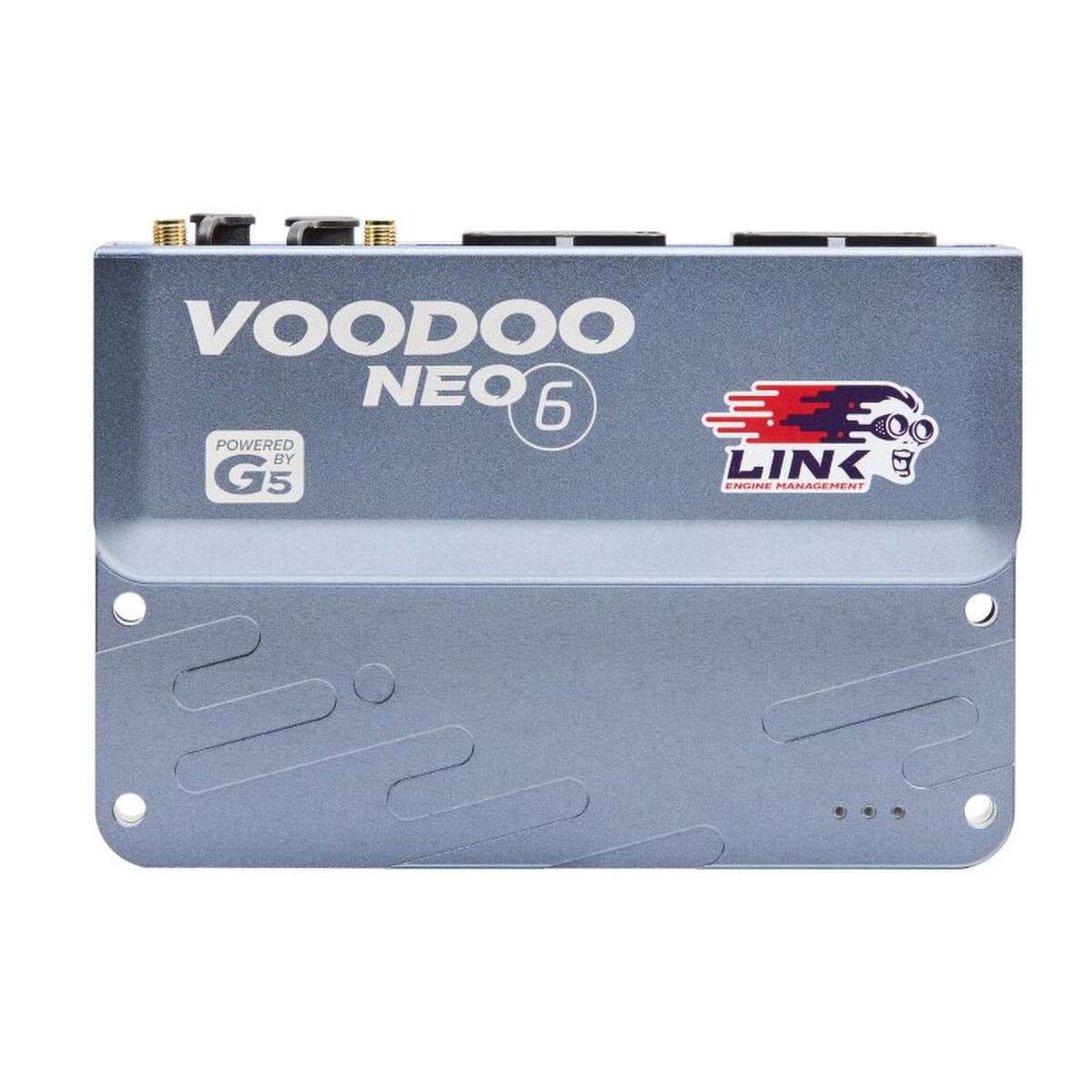

Link ECU G5 Voodoo Neo 6 - 156-5000 - image 2

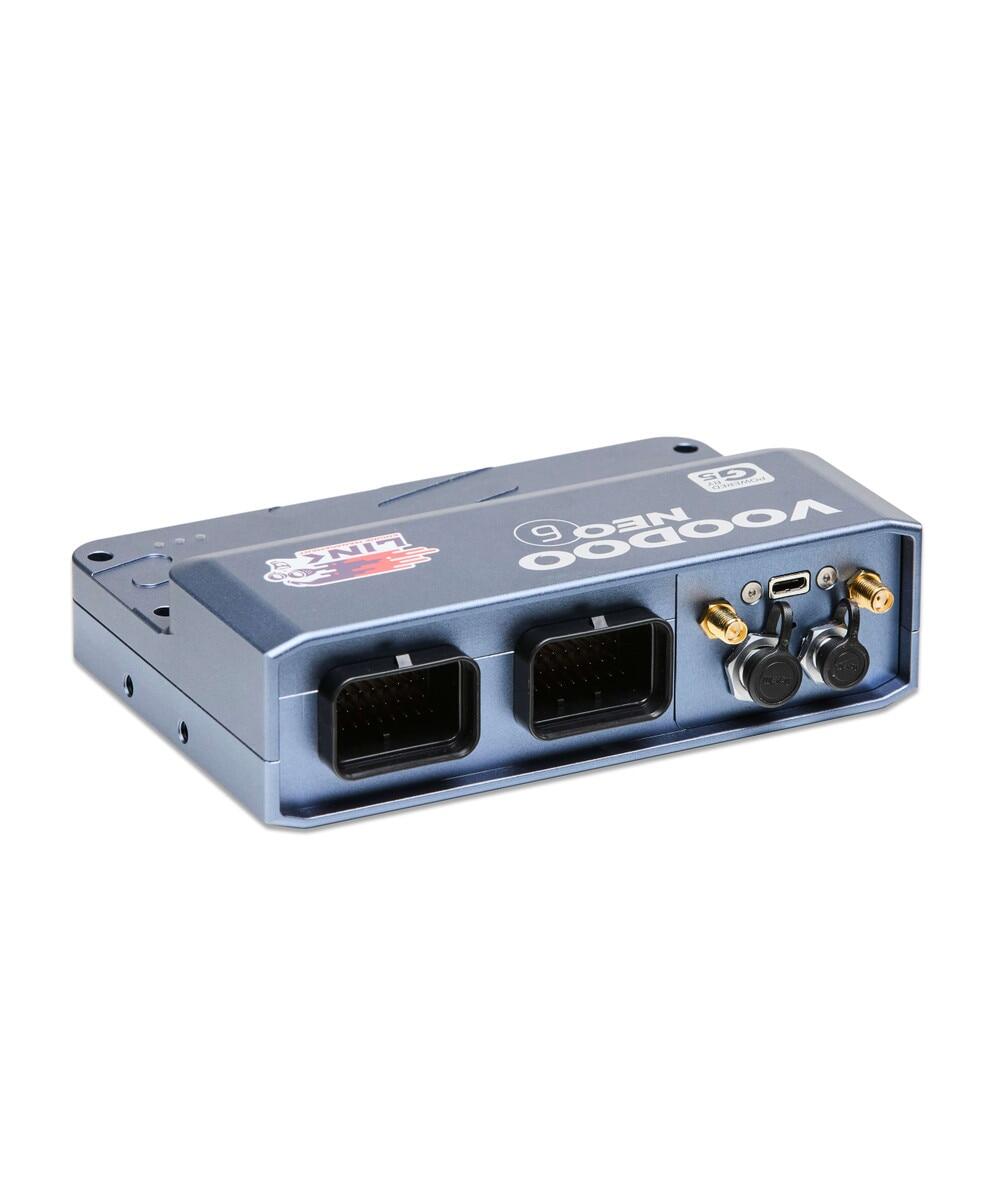

Link ECU G5 Voodoo Neo 6 - 156-5000 - image 3

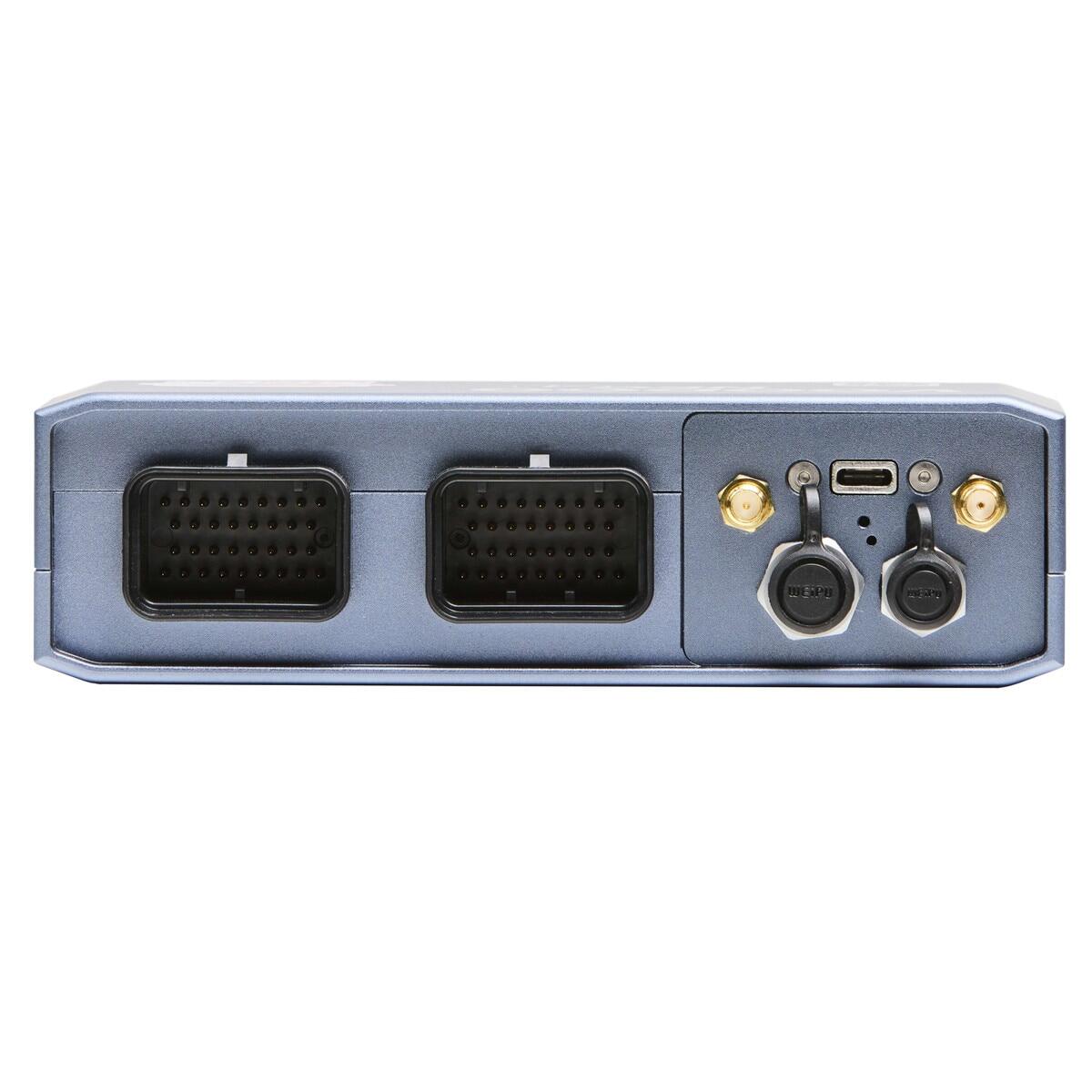

Link ECU G5 Voodoo Neo 6 - 156-5000 - image 4

G5 Voodoo Neo 6 - 156-5000
Link ECU

The next generation of engine management for many more engines.

The G5 Voodoo Neo 6 can run 8 cylinders with port or direct injection and direct spark, or 6 cylinders with direct/port staged injection and direct spark.

The G5 Voodoo processing units are the perfect choice for professional-level motorsport, and all NEOs are direct injection capable.

£0.00
£2,634.00
RRP: £2,634.00
Earn0
reward points

In stock

Sorry! We're out of stock, but you can still back order this item

Add To Your Wishlist
  • Description

    The G5 Voodoo Neo 6 can run:

    • 8 cylinders with port or direct injection and direct spark
    • 6 cylinders with direct/port staged injection and direct spark

    The G5 Voodoo processing units are the perfect choice for professional-level motorsport. The G5 Voodoo Neo 6 works on a variety of vehicles. Please contact a Link ECU reseller or our technical team for advice regarding your specific project.

    In the Box

    • G5 Voodoo Neo 6 ECU
    • USB-C Connection Cable
    • WiFi Antenna
    • 4m GPS Antenna (Magnetic or Adhesive Mount)
    • USB-C and SMA Dust Covers
    • QuickStart Guide (A5)
    • Installer I/O Table (A3)
    • Link stickers

    Requires “A” & “B” connector kits (not supplied).

  • Features
    • New comms module: up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
    • Built in ethernet
    • 1GB onboard logging in data storage unit
    • 1 onboard wideband
    • CNC case, sealed enclosure
    • 68 pins total (Link A and B 34 pin Superseal connectors)
    • K-line support
    • New WEIPU CAN connector, which supplies power for the CAN-bus
    • Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs.
    • Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC
    • Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software
    • More mounting options than ever, with through holes and threaded mount holes on the side and underneath
    • All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6
  • Specifications
    • 12 injector pins
    • 8 ignition pins
    • 6 aux. output pins
    • 6 ADIO pins (Aux output, analogue input, or digital input)
    • 3 analog inputs
    • 10 digital inputs
    • 4 temperature inputs
    • 2 knock inputs
    • 2 trigger inputs
    • 1 wideband lambda controller
    • Dual H-Bridge e-throttle control
    • 5V sensor supply
    • All ignition and auxiliary pins are back feed protected

    Communications

    • USB-C (cable included), power over USB
    • WiFi: connect directly via built-in WiFi access point, or add to an existing network
    • CAN: WEIPU connector supplies power for CAN devices
    • Built-in Ethernet
    • GPS (antenna included)

    Data Logging

    • 1GB logging capacity
    • Logging over WiFi
    • 100kHz max total logging rate
    • 250 logging channels

    Size & Weight

    • Length: 107mm
    • Width: 158mm
    • Max side height: 45mm
    • Weight: 730g

    Connectors

    • A & B Headers: TE Superseal 1.0 (Link Pin Kits A & B)
    • WiFi: RP-SMA
    • GPS: SMA
    • USB: USB Type-C
    • Ethernet: WEIPU SF810B/P8
    • CAN1: WEIPU SF610B/P4
